ОПИСАНИЕ ТОВАРА
Культиватор GT1050 (роторная мотыга или рототиллер) подходит для всех видов рельефа и мест, где не справится большой культиватор.(видео)
Они станут лучшей заменой сельскохозяйственным каткам. Он широко применяется для культивации, рытья канав, создания гребней на сухих и рисовых полей, а также для обработки бульонных овощей, питомников, садов и т.д.
Аналогичные продукты: GT1350, GT1000A.
If you own gardens, solariums or large tracts of land, a wise choice is the Mingsin GT1050 Professional Cultivator / Tiller, which is able to respond in a timely manner, working the soil with the attached accessories in the best possible way, preparing it for planting seeds. The Mingsin GT1050 Professional Cultivator / Tiller is equipped with the same gearbox and transmission box like GT1350 Professional Cultivator / Tiller. The Mingsin GT1050 Professional Cultivator / Tiller can easily dig any type of soil, regardless of its hardness, reaching depths of up to 360 mm with an efficiency of over 1500 sqm / h. Compared to the classic models, the Mingsin GT1050 Professional Cultivator / Tiller makes the work of the earth much more efficient.
The Mingsin GT1050 Professional Cultivator / Tiller is equipped with an 6-12 hp engine and digging cutters with an adjustable width between 750 mm and 1250 mm.
The powerful engine, 2 + 1 gearbox and tapered sprocket transmission make the Mingsin GT1050 Professional Cultivator / Tiller a perfect machine for trailer transport, and can easily tow 1000 kg load.
The Mingsin GT1050 Professional Cultivator / Tiller is equipped with an emergency stop lever to protect you in emergency situations.
Also, the start-up of the Mingsin GT1050 Professional Cultivator / Tiller can be easily done both manually and automatically on a turnkey basis. It is equipped with a lighting system that allows its use even in lower visibility conditions.
Mingsin GT1050 Professional Cultivator / Tiller Transmission Housing requires no special maintenance and can be used on all soil groups. It is made of nodular cast iron, resistant to shocks and mechanical wear.
For an easier start, the Mingsin GT1050 Professional Cultivator / Tiller is equipped with a turnkey automatic start system. The accessories that can be mounted on the Mingsin GT1050 Professional Cultivator / Tiller are: plow, ditcher, cultivator, trailer.
Another important aspect is the easy maintenance of the Mingsin GT1050 Professional Cultivator / Tiller as it is very simple and does not require too much advanced technical knowledge.
Difficult soils can be machined with the Mingsin GT1050 Professional Cultivator / Tiller, which is equipped with cutters made of quality steel, so that its resistance is combined with practicality.
The unique construction of the Mingsin GT1050 Professional Cultivator / Tiller is based on the transmissible circuit between the gearbox and the milling cutter, and the conical sprockets help to operate the works on the hardest surfaces in a record time.
Another important aspect is the easy maintenance of the Mingsin GT1050 Professional Cultivator / Tiller as it is very simple and does not require too much advanced technical knowledge.
Maneuverability is given by the construction of the guidance and operation system, the controls being positioned at the user's fingertips. The machine is easy to operate thanks to the 3 speeds (2 forward + 1 reverse).
The working speed of the Mingsin GT1050 Professional Cultivator / Tiller is an aspect that allows you to perform various household tasks in a very short time.
A good landlord always knows how important it is to aerate the soil in order to have the richest possible crop. Thus, using the Mingsin GT1050 Professional Cultivator / Tiller, the soil can be provided with the air necessary for the harmonious development of the plants.
The Mingsin GT1050 Professional Cultivator / Tiller can help you destroy unwanted weeds or harmful insects that can damage your crop.
Main Applications of Power tiller

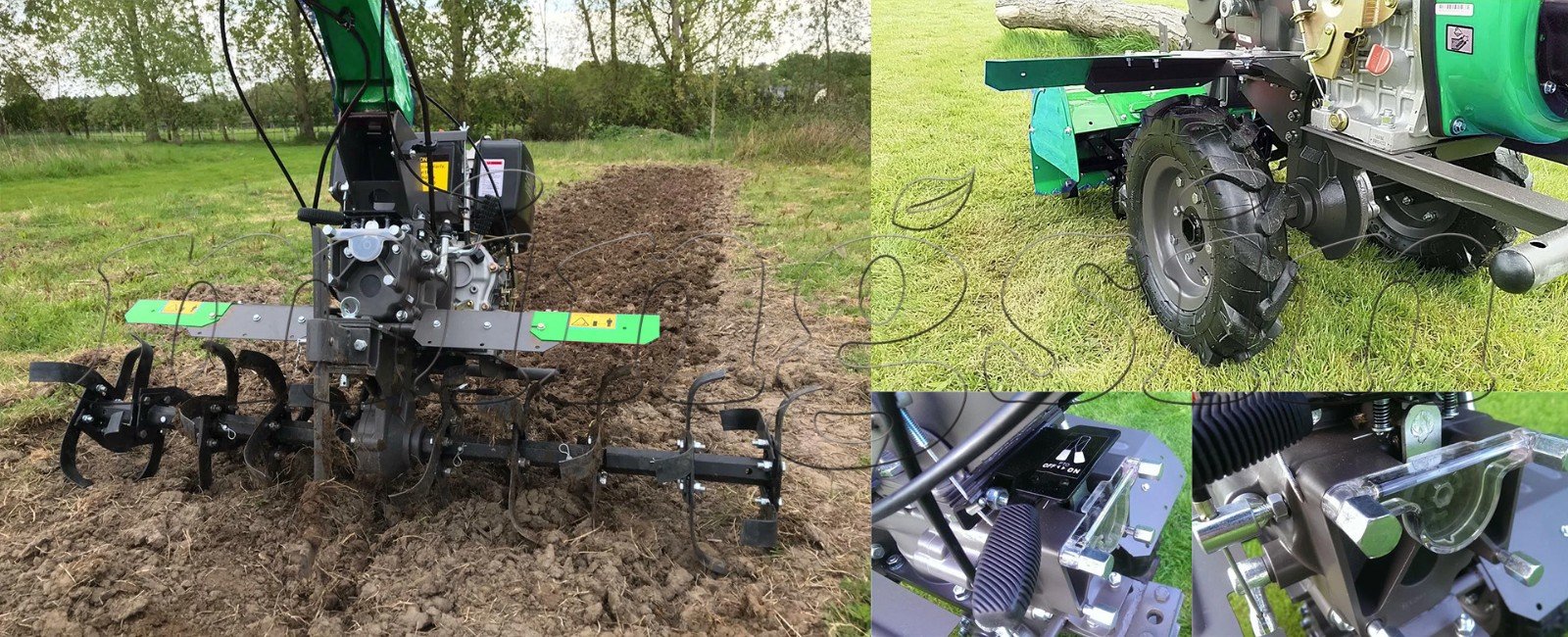

Mount the revolving farming device onto the left and right of the transmission shaft of the running part of the power tiller, then use two M8*55 screw bolts for axial positioning purpose, finally the machine can start revolving farming .
Under the velocity adjustment screw before the ditcher is mounted. Subject to the adjustment of the width and height for ditcher, then the ditching can be conducted.
After mounting the forearm of the wagon box on the trailer and wheels one the transmission shaft of the running part, the machine can do a transportation job. The rated load is 250kg, under normal rotated speed of the diesel engine, speed of the fast shift is about 10km/h and that of the slow shift is about 5km/h.
Dismount protection cover of the gear-box, unscrew the bolts away from the rear part of the main shaft, take the cover for keys out of the shaft, fasten the self-contained belt pulley or coupling onto the gear-box's main shaft's rear part with screws. Type A of common V belt is adopted for belt pulley's cross section. Rated rpm of the belt pulley is 3000 rpm.
When the corresponding devices are equipped pumping water, spraying,threshing, reaping, generating electricity, etc are realized.
(Above additional implements are in exploitation process. Please contact with the local distributor if you need above implements.)
Parameters:
Model | Unit | GT1050 |
Overall dimensions (L*W*H) | mm | 1035*560*860 |
Net weight | kg | 128 |
Tilling width | mm | 750-1050 |
Tilling depth | mm | 150-300 |
Diameter of circle tines | cm | Ø36 |
Max. rotary speed (high speed) | r/min. | 114 |
Max. rotary speed (low speed) | r/min. | 65 |
Max. rotary speed (reverse) | r/min. | 49 |
Max. torque (output axles) | N.m | 220 |
Transmission mode | Gear transmission, direct connecting | |
Driving wheel (tyre) | 4.00-8, 4.00-10, 5.00-12 | |
Working efficiency | sq.m/h. | 800-1600 |
Starting system | Recoil starting / Electric starting | |
Engine | model | 178F |
Engine type | Single cylinder, forced air cooled, 4-stroke, direct injection | |
Fuel | 0#, -10#, -20# diesel | |
Displacement | cc | 296 |
Rated power/rated speed | kW/r/min | 3.7/3000 4/3600 |
Fuel consumption | (g/kW·h) /r/min | 276.1/3000, 285.6/3600 |
The Mingsin GT1050 Professional Cultivator / Tiller can easily dig any type of soil, regardless of its hardness, reaching depths of up to 360 mm with an efficiency of over 1500 sqm / h. Compared to the classic models, the Mingsin GT1050 Professional Cultivator / Tiller makes the work of the earth much more efficient.
The Mingsin GT1050 Professional Cultivator / Tiller is equipped with an 6-12 hp engine and digging cutters with an adjustable width between 750 mm and 1250 mm.
The powerful engine, 2 + 1 gearbox and tapered sprocket transmission make the Mingsin GT1050 Professional Cultivator / Tiller a perfect machine for trailer transport, and can easily tow 1000 kg load.
The Mingsin GT1050 Professional Cultivator / Tiller is equipped with an emergency stop lever to protect you in emergency situations.
Also, the start-up of the Mingsin GT1050 Professional Cultivator / Tiller can be easily done both manually and automatically on a turnkey basis. It is equipped with a lighting system that allows its use even in lower visibility conditions.
Mingsin GT1050 Professional Cultivator / Tiller Transmission Housing requires no special maintenance and can be used on all soil groups. It is made of nodular cast iron, resistant to shocks and mechanical wear.
For an easier start, the Mingsin GT1050 Professional Cultivator / Tiller is equipped with a turnkey automatic start system. The accessories that can be mounted on the Mingsin GT1050 Professional Cultivator / Tiller are: plow, ditcher, cultivator, trailer.
Another important aspect is the easy maintenance of the Mingsin GT1050 Professional Cultivator / Tiller as it is very simple and does not require too much advanced technical knowledge.
Difficult soils can be machined with the Mingsin GT1050 Professional Cultivator / Tiller, which is equipped with cutters made of quality steel, so that its resistance is combined with practicality.
The unique construction of the Mingsin GT1050 Professional Cultivator / Tiller is based on the transmissible circuit between the gearbox and the milling cutter, and the conical sprockets help to operate the works on the hardest surfaces in a record time.
Another important aspect is the easy maintenance of the Mingsin GT1050 Professional Cultivator / Tiller as it is very simple and does not require too much advanced technical knowledge.
Maneuverability is given by the construction of the guidance and operation system, the controls being positioned at the user's fingertips. The machine is easy to operate thanks to the 3 speeds (2 forward + 1 reverse).
The working speed of the Mingsin GT1050 Professional Cultivator / Tiller is an aspect that allows you to perform various household tasks in a very short time.
A good landlord always knows how important it is to aerate the soil in order to have the richest possible crop. Thus, using the Mingsin GT1050 Professional Cultivator / Tiller, the soil can be provided with the air necessary for the harmonious development of the plants.
The Mingsin GT1050 Professional Cultivator / Tiller can help you destroy unwanted weeds or harmful insects that can damage your crop.
Mount the revolving farming device onto the left and right of the transmission shaft of the running part of the power tiller, then use two M8*55 screw bolts for axial positioning purpose, finally the machine can start revolving farming .
II. Ditching &Ridging
Under the velocity adjustment screw before the ditcher is mounted. Subject to the adjustment of the width and height for ditcher, then the ditching can be conducted.
After mounting the forearm of the wagon box on the trailer and wheels one the transmission shaft of the running part, the machine can do a transportation job. The rated load is 250kg, under normal rotated speed of the diesel engine, speed of the fast shift is about 10km/h and that of the slow shift is about 5km/h.
Dismount protection cover of the gear-box, unscrew the bolts away from the rear part of the main shaft, take the cover for keys out of the shaft, fasten the self-contained belt pulley or coupling onto the gear-box's main shaft's rear part with screws. Type A of common V belt is adopted for belt pulley's cross section. Rated rpm of the belt pulley is 3000 rpm.
When the corresponding devices are equipped pumping water, spraying,threshing, reaping, generating electricity, etc are realized.
(Above additional implements are in exploitation process. Please contact with the local distributor if you need above implements.)
Parameters:
Model | Unit | GT1050 |
Overall dimensions (L*W*H) | mm | 1035*560*860 |
Net weight | kg | 128 |
Tilling width | mm | 750-1050 |
Tilling depth | mm | 150-300 |
Diameter of circle tines | cm | Ø36 |
Max. rotary speed (high speed) | r/min. | 114 |
Max. rotary speed (low speed) | r/min. | 65 |
Max. rotary speed (reverse) | r/min. | 49 |
Max. torque (output axles) | N.m | 220 |
Transmission mode | Gear transmission, direct connecting | |
Driving wheel (tyre) | 4.00-8, 4.00-10, 5.00-12 | |
Working efficiency | sq.m/h. | 800-1600 |
Starting system | Recoil starting / Electric starting | |
Engine | model | 178F |
Engine type | Single cylinder, forced air cooled, 4-stroke, direct injection | |
Fuel | 0#, -10#, -20# diesel | |
Displacement | cc | 296 |
Rated power/rated speed | kW/r/min | 3.7/3000 4/3600 |
Fuel consumption | (g/kW·h) /r/min | 276.1/3000, 285.6/3600 |
As a trusted manufacturer with a proven track record, Mingsin's Gear Driven Professional Cultivator / Tiller offer exceptional quality and value. Here’s what makes Mingsin different:
· Unwavering commitment to quality: Mingsin prioritizes the use of advanced materials and precision engineering in its tillers, ensuring long-lasting performance and reliability.
· Dedicated dealer support: Mingsin offers its dealers comprehensive support, including training programs, marketing materials and custom accessories.
· By cooperating with Mingsin, you can increase your performance and gain a good reputation. Contact Mingsin to learn more about becoming a dealer and providing your customers with gear driven power tillers.
